Product Description
Appliion:Excavator

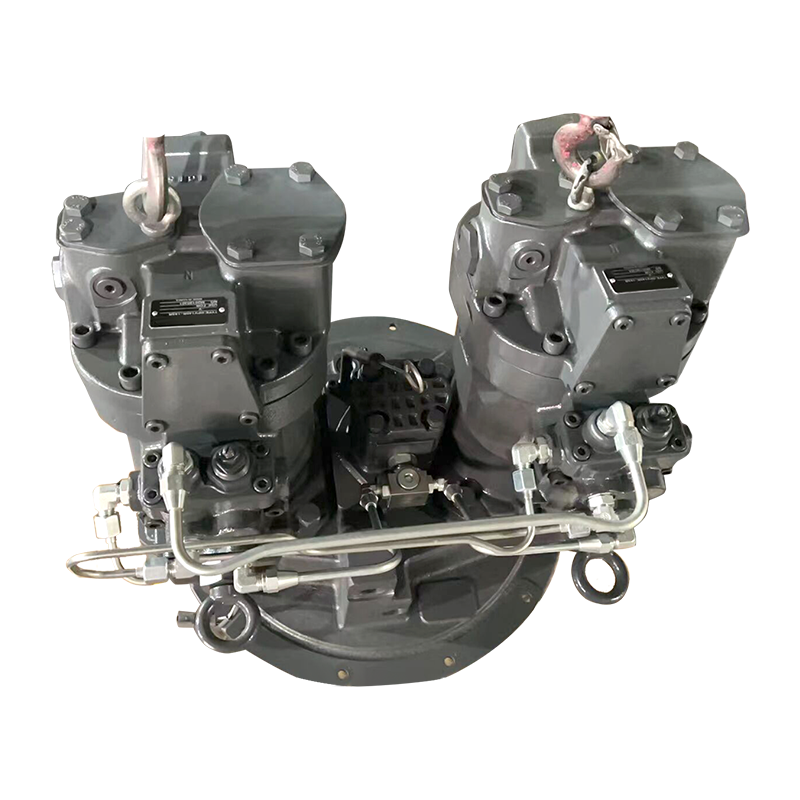

Part name:pump hydarulic
Part number:9195241 9195238
Model:zx330 3
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | pump hydarulic |
| Part number | 9195241 9195238 |
| Model | zx330 3 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

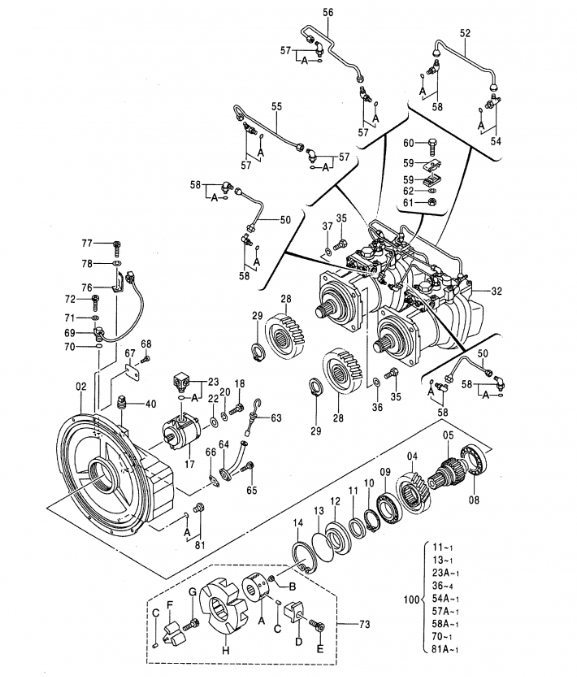

| # | Part No | Part Name | Qty. | Price request |
| | 9195241 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | |
| | (9195238) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | |
| 02 | 1028405 | . CASING; GEAR | 1 | |
| 04 | 3089266 | . GEAR; CENTER | 1 | |
| 05 | 3081085 | . SHAFT; CENTER | 1 | |
| 08 | 4395453 | . BRG.; BALL | 1 | |
| 09 | 4395457 | . BRG.; BALL | 1 | |
| 10 | 4191219 | . RING; RETAINING | 1 | |
| 11 | 4179833 | . SEAL; OIL | 1 | |
| 12 | 3033593 | . COVER; T. MISSION | 1 | |
| 13 | 4179834 | . O-RING | 1 | |
| 14 | 991733 | . RING; RETAINING | 1 | |
| 17 | 4181700 | . PUMP; GEAR | 1 | |
| 18 | M341030 | . BOLT; SOCKET | 2 | |
| 20 | 984054 | . WASHER; SPRING | 2 | |
| 22 | 4114402 | . WASHER | 2 | |
| 23 | 4191974 | . ADAPTER | 1 | |
| 23A | 4506418 | .. O-RING | 1 | |
| 28 | 3035853 | . GEAR; DRIVE | 2 | |
| 29 | 991345 | . RING; RETAINING | 2 | |
| 32 | 9195242 | . PUMP; UNIT (FOR ASSEMBLY OF MACHINE) | 2 | |
| 32 | (9207291) | . PUMP; UNIT (FOR TRANSPORTATION) | 2 | |
| 35 | J901645 | . BOLT | 8 | |
| 36 | 4126090 | . WASHER; SEAL | 4 | |
| 37 | A590916 | . WASHER; SPRING | 4 | |
| 40 | 4234782 | . PLUG | 1 | |
| 50 | 4438889 | . PIPE | 2 | |
| 52 | 4438888 | . PIPE | 1 | |
| 54 | 4203485 | . FITTING; PIPE | 1 | |
| 54A | 957366 | .. O-RING | 1 | |
| 55 | 3089617 | . PIPE | 1 | |
| 56 | 3089618 | . PIPE | 1 | |
| 57 | 4118499 | . FITTING; PIPE | 4 | |
| 57A | 957366 | .. O-RING | 1 | |
| 58 | 4293950 | . ELBOW; S | 5 | |
| 58A | 957366 | .. O-RING | 1 | |
| 59 | 4179843 | . CLAMP | 2 | |
| 60 | J900828 | . BOLT | 1 | |
| 60 | J900830 | . BOLT | 1 | |
| 61 | M500807 | . NUT | 1 | |
| 62 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4242263 | . GAUGE; LEVEL | 1 | |
| 64 | 4242262 | . PIPE | 1 | |
| 65 | M340816 | . BOLT; SOCKET | 2 | |
| 66 | 9742779 | . PACKING | 1 | |
| 67 | | . NAME-PLATE | 1 | |
| 68 | M492564 | . SCREW; DRIVE | 2 | |
| 69 | 4265372 | . SENSOR; REVOL. | 1 | |
| 70 | 4306888 | . O-RING | 1 | |
| 71 | A590106 | . WASHER; PLANE | 1 | |
| 72 | M340616 | . BOLT; SOCKET | 1 | |
| 73 | 4191663 | . COUPLING | 1 | |
| 73 | 4479978 | . COUPLING | 1 | |
| 73A | 4216945 | .. HUB | 1 | |
| 73A | 4613100 | .. HUB | 1 | |
| 73B | 4183170 | .. SCREW; SET | 2 | |
| 73C | 4101345 | .. PIN; SPRING | 12 | |
| 73D | 4216947 | .. INSERT | 4 | |
| 73E | 4216949 | .. BOLT; SOCKET | 4 | |
| 73F | 4216946 | .. INSERT | 4 | |
| 73G | 4216948 | .. BOLT; SOCKET | 4 | |
| 73H | 4216944 | .. COUPLING | 1 | |
| 76 | 4252767 | . BRACKET | 1 | |
| 77 | M340613 | . BOLT; SOCKET | 1 | |
| 78 | 4169516 | . WASHER; SPRING | 1 | |
| 81 | 4092534 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 | |
| 100 | 4471487 | KIT; SEAL | 1 | |
Our advantages:
Ø Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Ø Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
Ø Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
company model three
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
