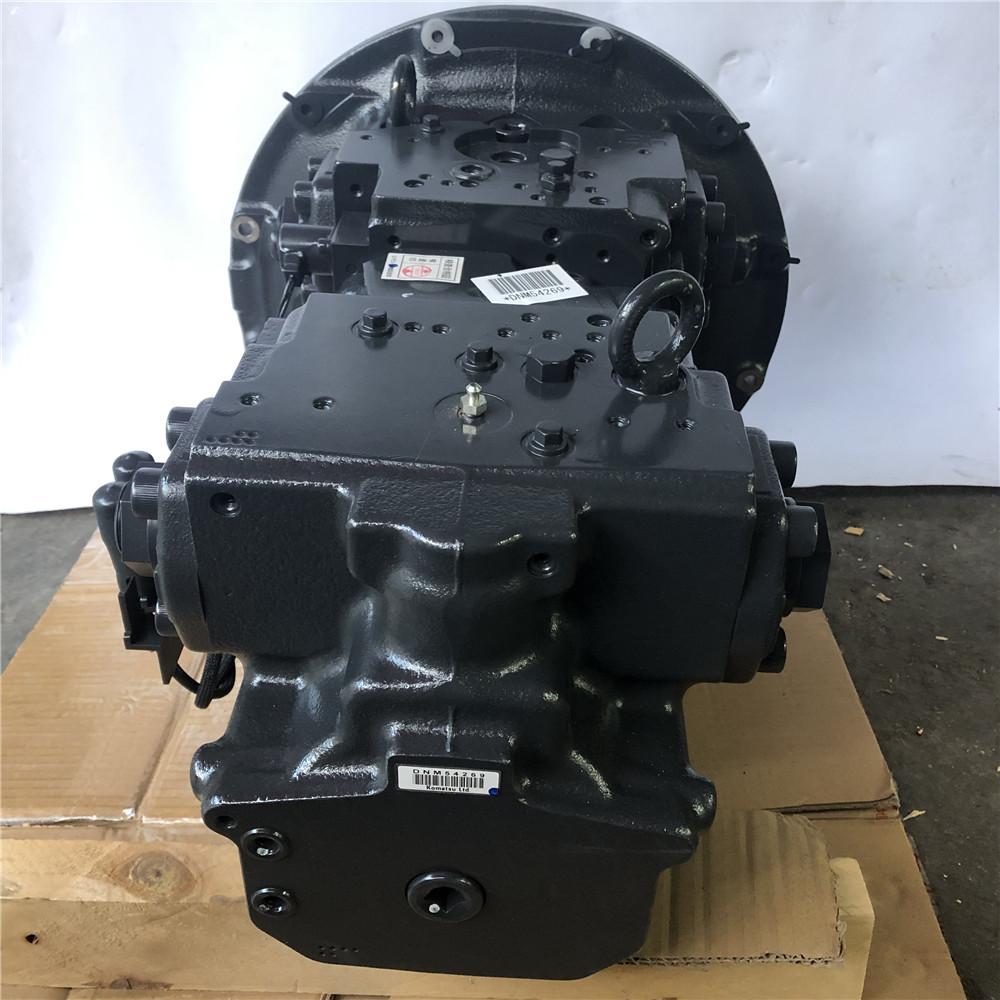

pc220 pc 220-3 Belparts Excavator Main Pump pc220 5 pc220-5 pc220-7 708-25-01054 Hydraulic Pump for komatsu
Product Description
| Product Name: | Hydraulic Main Pump |
| Model: | pc220 pc 220-3 pc220 5 pc220-5 pc220-7 |
| Part Number: | 708-25-01054 |
| MOQ: | 1 PIECE |
| Packing: | Standard Exporting Wooden Case |
| Delivery time: | Within 2 days After full Payment |
Product Name:Hydraulic Main Pump
Model:pc220 pc 220-3 pc220 5 pc220-5 pc220-7
Part Number:708-25-01054
MOQ:1 PIECE
Packing:Standard Exporting Wooden Case
Delivery time:Within 2 days After full Payment

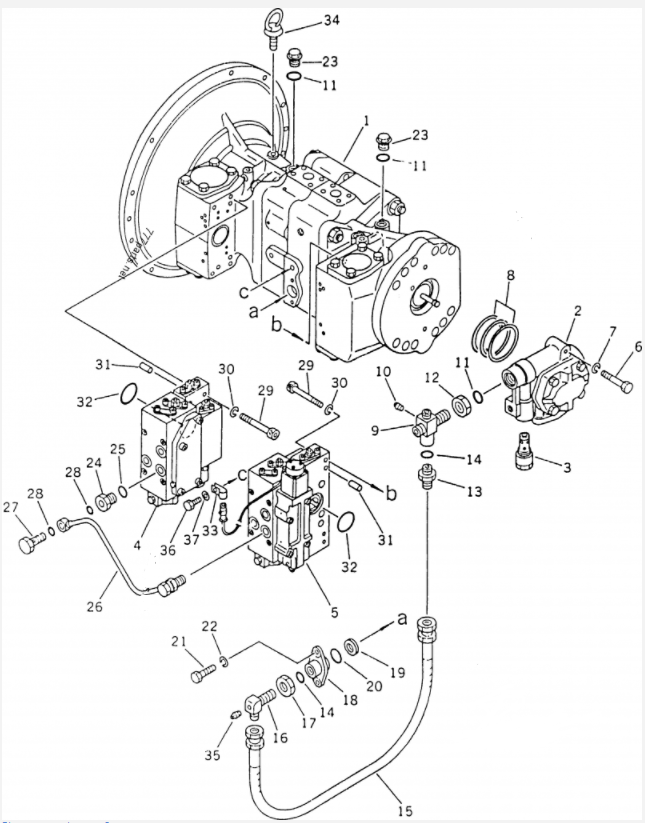

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-25-01054 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01053 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01052 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01051 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01050 | PUMP ASS'Y | 1 | |
| 1 | 708-25-10101 | PUMP ASS'Y | 1 | |
| 1 | (708-25-11100) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-28201) | PUMP ASS'Y | 1 | |
| 3 | (708-23-14800) | VALVE ASS'Y,RELIEF | 1 | |
| 4 | (708-25-15100) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 5 | (708-25-16101) | SERVO VALVE ASS'Y,REAR | 1 | |
| 6 | (01010-31260) | Bolt | 2 | |
| 7 | (01602-01236) | WASHER,SPRING (SEE FIG.0202) | 2 | |
| 8 | 708-25-05030 | SHIM KIT | 1 | |
| 8 | | Shim | 2 | |
| 8 | | Shim | 2 | |
| 8 | | Shim | 1 | |
| 9 | 708-25-19111 | JOINT | 1 | |
| 10 | 07042-20108 | PLUG,(FOR W/O. CORROSION RESISTOR) | 1 | |
| 11 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 4 | |
| 12 | 07239-12410 | NUT (ITL) | 1 | |
| 13 | 07230-10422 | UNION,(WITH POWER TILT) | 1 | |
| 14 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 2 | |
| 15 | 07102-20404 | HOSE,INLET | 1 | |
| 16 | 07231-20422 | Elbow | 1 | |
| 17 | 07239-12009 | NUT,(FOR LONG LEVER CONTROL) | 1 | |
| 18 | 708-25-19120 | Flange | 1 | |
| 19 | 720-68-15240 | Filter | 1 | |
| 20 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 21 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 22 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 2 | |
| 23 | 07044-02412 | PLUG,MAGNETIC | 3 | |
| 24 | 706-46-53260 | Plug | 2 | |
| 25 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 26 | 708-25-19140 | Tube | 1 | |
| 27 | 706-46-53180 | BOLT,JOINT | 2 | |
| 28 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 29 | (708-25-19130) | Bolt | 8 | |
| 30 | (01602-00825) | WASHER,SPRING (SEE FIG.0331 OR 0331A) | 8 | |
| 31 | (04020-00616) | PIN,SEE FIG. K4010-71A0 | 4 | |
| 32 | (07000-03048) | O-ring | 2 | |
| 33 | 08036-21814 | CLIP,(FOR SLAG HANDLING) (FOR USA) | 1 | |
| 34 | 04530-01018 | BOLT, EYE | 2 | |
| 35 | 07042-20108 | PLUG,(FOR W/O. CORROSION RESISTOR) | 1 | |
| 36 | 01010-31016 | BOLT,(SANDY AND DUSTY SPEC.) | 1 | |
| 37 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 | |
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Exhibition Strength
In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.
Delivery
Hot products
Factory Superiority
,
FAQ:
Q1: I know only the excavator model, but can not offer parts No., what should I do ?
A1: If possible, you can send us the old photo, nameplate or the size for reference.
Q2: What is the warranty of the parts after I purchase?
A2: The warranty is 6/12 Months based on the item details.
Q3: How can I pay the order?
A3: We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
Q4: When will get the items after I place order?
A4: Once your payment is confirmed, we will arrange the goods within 24 hours, if not in stock ,we will inform you before placing the order.
Q5: How can I do if there is something wrong with the items?
A5: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item.
Q6: What is your main products?
A6: We are specialized in the excavator spare parts, such as travel motor gearbox/assy/parts, swing gearbox/assy/motor/parts, hydraulic pump assy/parts, gear parts. If you need other excavator parts, we also can supply as your requirements.
