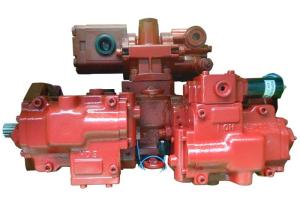

Excavator K3V112DTP hydraulic gear pump SH200A3 SY215-9 SK225 main pump
Product Description
| Model NO. | K3V112DTP-9N24-14T |
| Description | Direct Factory Manufacture Hydraulic pump for EC210 EC240 Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T,PayPal,Alipay..etc. |
| Shipment | 7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |

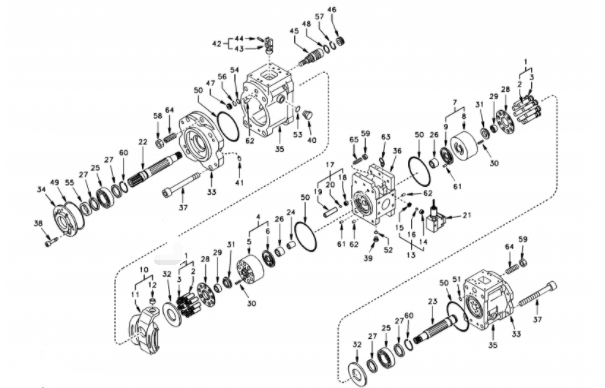

List of spare parts
| # | Part No | Part Name | Qty. |
| | SA 1142-00012 | Pump | 1 |
| 1 | SA 8230-14650 | Piston | 2 |
| 2 | VOE 14500003 | Piston | 9 |
| 3 | VOE 14500002 | Seat | 9 |
| 4 | SA 8230-28580 | Cylinder | 1 |
| 5 | SA 8230-28560 | Block | 1 |
| 6 | VOE 14500001 | Plate | 1 |
| 7 | SA 8230-28590 | Cylinder | 1 |
| 8 | SA 8230-28560 | Block | 1 |
| 9 | VOE 14500000 | Plate | 1 |
| 10 | SA 8230-09800 | Plate | 2 |
| 11 | SA 8230-30540 | Plate | 1 |
| 12 | VOE 14500012 | Bushing | 1 |
| 13 | SA 7223-00450 | Check valve | 2 |
| 14 | SA 7223-00500 | Seat | 1 |
| 15 | SA 7223-00520 | Guard | 1 |
| 16 | SA 9676-73200 | Ball | 1 |
| 17 | SA 7223-00460 | Check valve | 2 |
| 18 | SA 7223-00500 | Seat | 1 |
| 19 | SA 7223-00540 | Guard | 1 |
| 20 | SA 9676-73200 | Ball | 1 |
| 21 | SA 8230-09020 | Valve | 1 |
| 22 | SA 8230-09100 | Shaft | 1 |
| 23 | SA 8230-09070 | Shaft | 1 |
| 24 | SA 8230-09660 | Coupling | 1 |
| 25 | SA 8230-26610 | Roller Bearing | 2 |
| 26 | SA 8230-26700 | Needle Bearing | 2 |
| 27 | SA 8230-14530 | Spacer | 4 |
| 28 | SA 8230-09370 | Plate | 2 |
| 29 | SA 8230-09680 | Bushing more | 2 |
| 30 | SA 8230-09710 | Spring | 18 |
| 31 | SA 8230-09670 | Spacer | 2 |
| 32 | SA 8230-21920 | Plate | 2 |
| 33 | SA 8230-08940 | Support | 2 |
| 34 | SA 8230-09350 | Cover | 1 |
| 35 | SA 8230-08930 | Body | 1 |
| 36 | SA 8230-08980 | Valve assembly | 1 |
| 37 | SA 8230-09690 | Bolt | 8 |
| 38 | SA 9016-10804 | Bolt | 4 |
| 39 | SA 9415-11021 | Plug | 3 |
| 40 | SA 9415-11051 | Plug | 4 |
| 41 | SA 7242-11040 | Plug | 21 |
| 42 | SA 8230-09790 | Pin | 2 |
| 43 | SA 8230-09320 | Pin | 1 |
| 44 | SA 7223-00570 | Pin | 1 |
| 45 | SA 8230-09250 | Piston | 2 |
| 46 | SA 8230-09640 | Stop | 2 |
| 47 | SA 8230-09650 | Stop | 2 |
| 48 | SA 9511-22035 | O-ring | 2 |
| 49 | SA 9511-22095 | O-ring | 1 |
| 50 | SA 9511-22145 | O-ring | 4 |
| 51 | SA 9511-12008 | O-ring | 16 |
| 52 | SA 9511-12011 | O-ring | 8 |
| 53 | SA 9511-12024 | O-ring | 4 |
| 54 | SA 9511-12018 | O-ring | 2 |
| 55 | SA 8230-26900 | Seal | 1 |
| 56 | SA 9566-10180 | Ring | 2 |
| 57 | SA 9566-20350 | Ring | 2 |
| 58 | SA 8230-25620 | Nut | 2 |
| 59 | SA 9111-12000 | Nut | 2 |
| 60 | SA 8230-25980 | Ring | 2 |
| 61 | SA 8230-26430 | Plate | 2 |
| 62 | SA 7223-00660 | Spring Pin | 4 |
| 63 | SA 8230-25450 | Eye Bolt | 2 |
| 64 | SA 8230-26780 | Bolt | 2 |
| 65 | SA 8230-09700 | Bolt | 2 |
| 100 | SA 8148-13080 | Sealing Kit | 1 |
