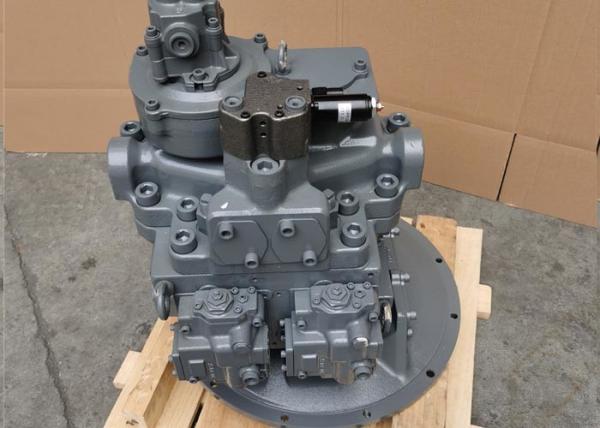

Excavator K5V200DPH 2959426 hydraulic pump parts E345C E345D main pump
Product Description
| Model NO. | K5V200DPH 2959426 |
| Description | Direct Factory Manufacture Hydraulic pump for E345C E345D Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |

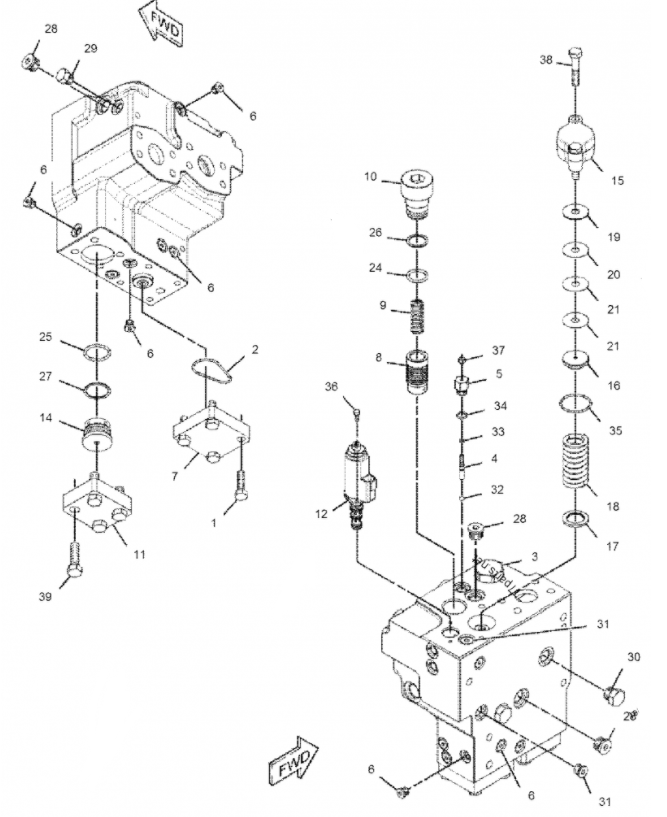

List of spare parts
| # | Part No | Part Name | Qty. |
| 1 | 8T4196 | CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z) | 4 |
| 2 | 0058593 | SEAL-O-RING (ID=52.07mm) (52.07-MM ID) | 1 |
| 3 | 1227768 | PLUG GROUP (CONTROL VALVE) | 1 |
| 4 | 1659513 | SEAT | 1 |
| 5 | 1659514 | PLUG | 1 |
| 6 | 2254820 | PLUG AS | 12 |
| | | (EACH INCLUDES) | |
| | 3J7354 | PACKING,PREFORMED PART OF KIT P/N 5R1427 | 1 |
| | 2254821 | PLUG | 1 |
| 7 | 2970346 | COVER | 1 |
| 8 | 2970349 | VALVE | 1 |
| 9 | 2970350 | SPRING | 1 |
| 10 | 2970351 | PLUG | 1 |
| 11 | 2970356 | COVER | 1 |
| 12 | 2970500 | VALVE GROUP-SOLENOID & PRESS REDC | 1 |
| 14 | 3100129 | PLUG | 1 |
| 15 | 3100231 | COVER | 1 |
| 16 | 3100138 | GUIDE | 1 |
| 17 | 3100139 | WASHER (24X36.5X3-MM THK) | 1 |
| 18 | 3100140 | SPRING | 1 |
| 19 | 3100141 | SHIM (1-MM THK) | 1 |
| 20 | 3100142 | SHIM (0.5-MM THK) | 1 |
| 21 | 3100143 | SHIM (0.25-MM THK) | 2 |
| 24 | 0951592 | SEAL-O-RING (ID=23.70mm) | 1 |
| 25 | 0951599 | SEAL-O-RING | 1 |
| 26 | 0951788 | RING, BACK-UP | 1 |
| 27 | 0951793 | RING-BACKUP | 1 |
| 28 | 1488395 | PLUG AS | 3 |
| | | (EACH INCLUDES) | |
| | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 |
| | 9S8005 | PLUG-O-RING (STRAIGHT THREAD O-RING) | 1 |
| 29 | 1488407 | PLUG (HEX HEAD) (-6 ORB) (CURRENT) (1616435 FRICTION DISC INTERCHANGEABLE WITH 1186547) (USE ALL OF ONE PART NUMBER) | 1 |
| | 3J1907 | SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE | 1 |
| | 9S4191 | PLUG,MACHINE THREAD FUEL INJECTION PUMP | 1 |
| 30 | 1488411 | PLUG GROUP | 2 |
| | | (EACH INCLUDES) | |
| | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 |
| | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 1 |
| 31 | 1620177 | PLUG AS | 2 |
| | | (EACH INCLUDES) | |
| | 3J1907 | SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE | 1 |
| | 9S8004 | PLUG-O-RING (STRAIGHT THREAD O-RING) | 1 |
| 32 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 1 |
| 33 | 3H0442 | SEAL (INCLUDED IN SEAL KIT) | 1 |
| 34 | 3J1907 | SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE | 1 |
| 35 | 6V5597 | SEAL-O-RING (ID=40.94mm) | 1 |
| 36 | 7I2272 | BOLT (M5X0.8X12-MM) | 2 |
| 37 | 7Y5226 | NUT (M5X0.8-THD) | 1 |
| 38 | 8T4182 | BOLT-PLT (M10 X 1.5 X 45) | 2 |
| 39 | 8T4183 | BOLT (M12X1.75X40MM) (M12X1.75X40-MM) | 4 |
| | | USE AS REQUIRED | |
| | | METRIC PART | |
| | | SEPARATE ILLUSTRATION | |
