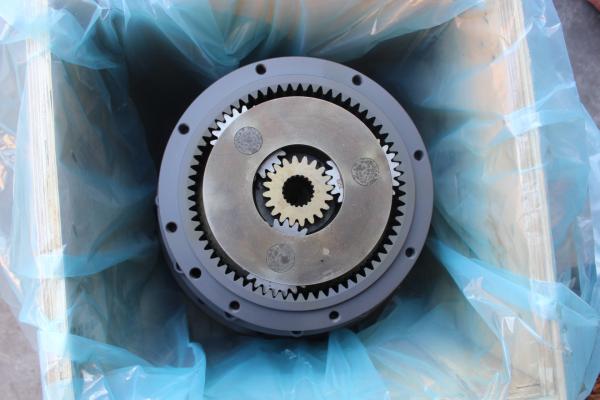

Excavator Spare ZX200-3 ZX200-5G ZX210-5G SWING GEARBOX 4610138 9316591 SWING REDUCTION FOR Hitachi

Excavator spare ZX200-3 ZX200-5G ZX210-5G SWING GEARBOX 4610138 9316591 SWING REDUCTION FOR Hitachi

The excavator slewing gearbox is one of the most critical core components of an excavator, primarily responsible for enabling the rotation of the upper structure. Driven by a hydraulic motor, the slewing gearbox transmits power to the slewing bearing, allowing the excavator to rotate flexibly during operation and perform various complex tasks such as digging, loading, and unloading. The performance of the slewing gearbox directly determines the operational precision, efficiency, and overall stability of the excavator. Therefore, the design and manufacturing of the slewing gearbox must meet extremely high technical requirements, including high load capacity, low noise, long service life, and excellent impact resistance.

PRODUCT DESCRIPTION
Model: 4610138 9316591 SWING DEVICE ASSY/SWING GEARBOX/SWING MOTOR/SWING REDUCTION GEARA FOR Hitachi ZX200-3 ZX200-5G ZX210-5G EXCAVATORS PARTS AFTERMARKET ORIGINAL	category: SWING DEVICE ASSY
Brand: TQ	Place of Origin:Other Country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers

Parts on group SWING DEVICE:
Pos.	Part No	Qty	Parts name	Comments
	9260805	[1]	SWING DEVICE
0	4610138	[1]	MOTOR;OIL (SWING)
1	991342	[1]	RING;RETAINING
2	9260804	[1]	T.MISSION (SWING)	I 9262916 <for assembly of machine>
2	9262916	[1]	T.MISSION (SWING)	<for transportation>
3	4614096	[8]	BOLT;SOCKET
4	4449144	[1]	PIPE
5	3107447	[1]	GAUGE;LEVEL
6	4332658	[1]	PIPE
7	4343365	[1]	CAP
9	+++++++	[1]	NAME-PLATE
10	M492564	[2]	SCREW;DRIVE

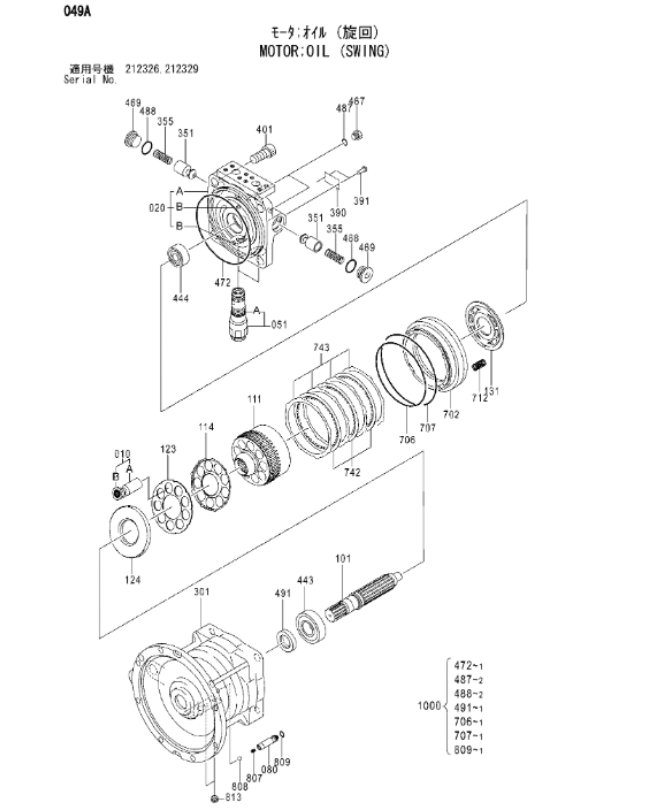

Parts on group MOTOR;OIL (SWING):
Pos.	Part No	Qty	Parts name
	4610138	[1]	MOTOR;OIL
10	788801	[1]	PISTON ASSY
010A.	+++++++	[9]	PISTON
010B.	+++++++	[9]	SHOE
20	788802	[1]	CASING ASSY
020A.	+++++++	[1]	CASING
020B.	+++++++	[2]	PIN;SPRING
51	4654845	[2]	VALVE;RELIEF
051A.	A811030	[2]	O-RING
80	788803	[1]	PLUNGER
101	788804	[1]	SHAFT
111	788805	[1]	CYLINDER
114	788806	[1]	SPRING;PLATE
123	788807	[1]	RETAINER
124	788808	[1]	PLATE
131	788809	[1]	PLATE;VALVE
301	788810	[1]	CASING
351	409215	[2]	PLUNGER
355	409216	[2]	SPRING
390	+++++++	[1]	PLATE
391	625509	[2]	PIN
401	365318	[4]	BOLT;SOCKET
443	788811	[1]	BRG.;ROL.
444	677203	[1]	BRG.;ROL.
467	629404	[2]	PLUG
469	692708	[2]	PLUG
472	1119003	[1]	O-RING
487	957366	[2]	O-RING
488	4506428	[2]	O-RING
491	788813	[1]	SEAL;OIL
702	788814	[1]	PISTON
706	353321	[1]	O-RING
707	425117	[1]	O-RING

With the continuous advancement of construction machinery technology, the design and manufacturing of slewing gearboxes are also constantly innovating. Modern slewing gearboxes not only focus on performance and reliability but also increasingly emphasize lightweight and intelligent design. For example, some new slewing gearboxes adopt lightweight designs by optimizing the structure and using high-strength, lightweight materials, reducing the overall weight and thereby lowering the energy consumption of the excavator. Additionally, the application of intelligent monitoring systems has become an important trend in the development of slewing gearboxes. By installing sensors inside the slewing gearbox, the operating status of the gears and bearings can be monitored in real time, allowing potential issues to be detected and warned in advance, thereby preventing sudden failures and improving the operational efficiency and safety of the excavator.

In summary, as a core component of the excavator, the performance and quality of the slewing gearbox directly affect the overall performance of the excavator. With continuous technological advancements, slewing gearboxes are moving towards higher efficiency, reliability, and intelligence, providing strong support for the efficient operation of excavators in various complex working conditions.
