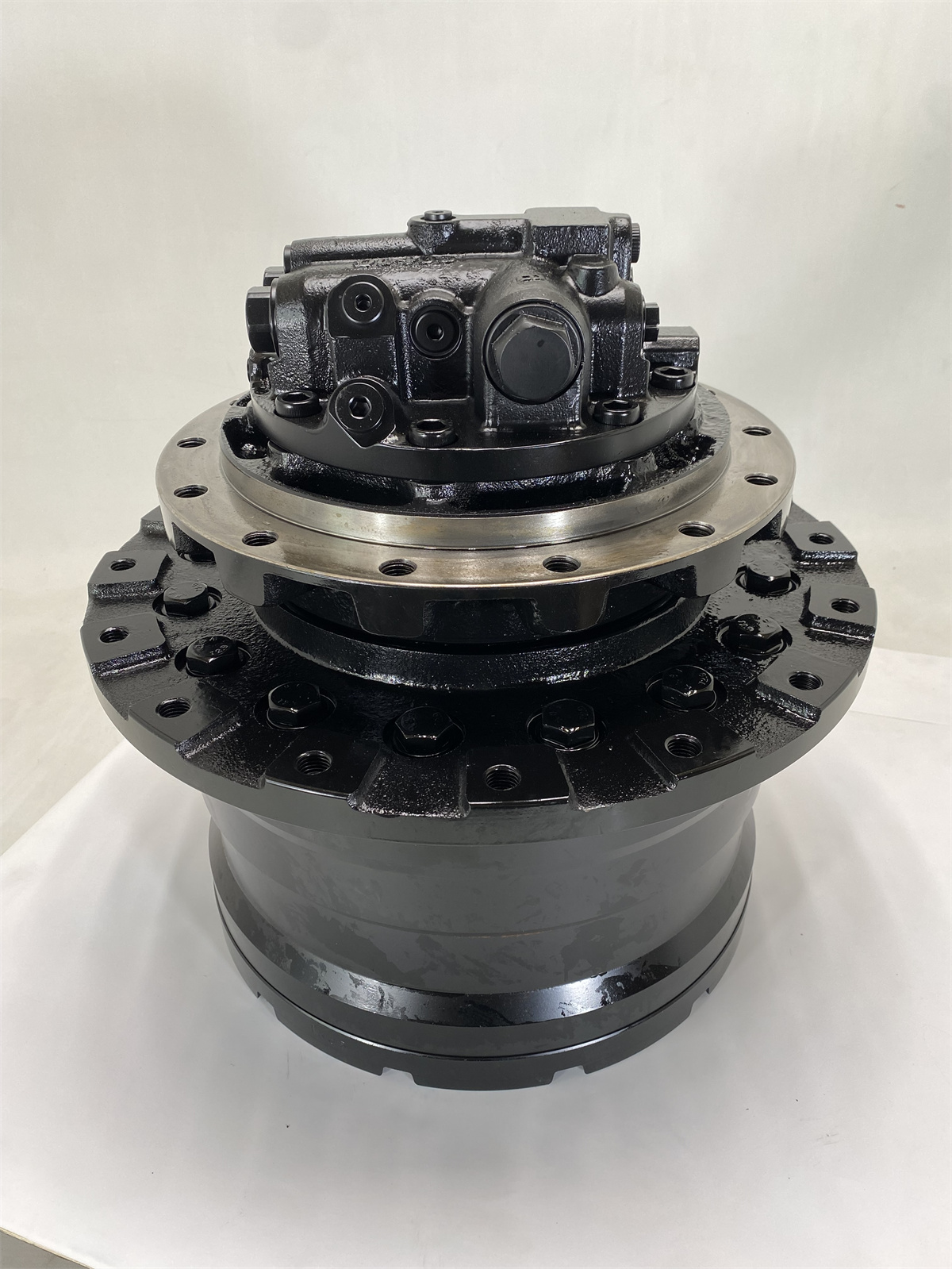

Hitchi ZX130 9289616 9180429 9196238 Travel Motor Assy for hitachi HMGE21E final drive
| Appliion | Excavator parts |
| Part name | Travel Motor Assy |
| Material | Steel |
| Model | ZX130 |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T&Western Union &Paypal |
| Delivery Time | Within 3 days after receiving the payment |
| Part number | 9289616 9180429 9196238 |
| Packing | Wooden package |
When you see an excavator effortlessly lifting tons of soil or precisely moving its bucket to a designated position, the key component behind these actions is the hydraulic system, with the hydraulic pump serving as its "heart." Simply put, a hydraulic pump functions much like the human heart, continuously "pumping" hydraulic oil to various actuators of the excavator, providing powerful support for the entire machine.
The working principle of a hydraulic pump is not overly complex. Through mechanical motion (typically the engine rotating the pump shaft), it creates volume changes within the pump chamber, resulting in oil suction and discharge. When the pump chamber's volume increases, a partial vacuum forms, drawing hydraulic oil from the tank. When the volume decreases, the oil is compressed, pressure rises, and the oil is then delivered into the hydraulic system. This cyclical suction and discharge process creates a continuous flow of hydraulic oil.

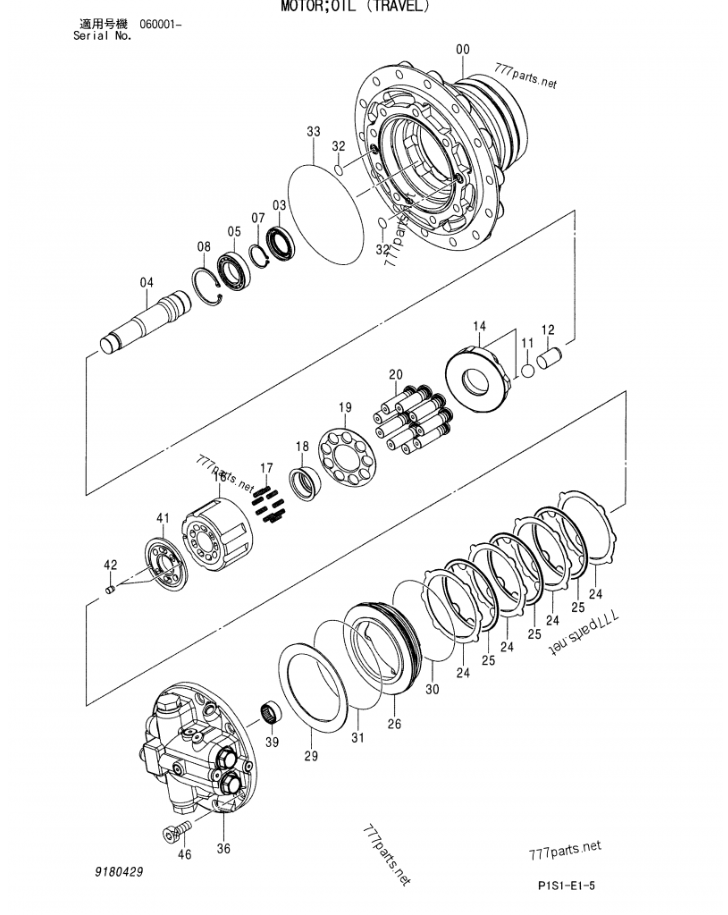

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| | 9180429 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| | (9196238) | MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 00 | 1027085 | . HOUSING | 1 | |
| 03 | 4364328 | . SEAL; OIL | 1 | |
| 04 | 3085780 | . SHAFT | 1 | |
| 05 | 4427427 | . BRG.; ROL. | 1 | |
| 07 | 962002 | . RING; RETAINING | 1 | |
| 08 | 991725 | . RING; RETAINING | 1 | |
| 11 | 4419238 | . BALL | 2 | |
| 12 | 4417431 | . PISTON | 1 | |
| 14 | 3085761 | . PLATE; SWASH | 1 | |
| 16 | 2043791 | . ROTOR | 1 | |
| 16 | 2049901 | . ROTOR | 1 | |
| 17 | 4312681 | . SPRING; COMPRES. | 9 | |
| 18 | 4419159 | . BUSHING | 1 | |
| 19 | 3085713 | . RETAINER | 1 | |
| 20 | 8076030 | . PISTON ASS'Y | 9 | |
| 24 | 3085871 | . PLATE | 4 | |
| 25 | 3085844 | . PLATE; FRICTION | 3 | |
| 26 | 3082754 | . PISTON | 1 | |
| 29 | 4364329 | . SPRING; DISC | 1 | |
| 30 | 4430356 | . O-RING | 1 | |
| 31 | 4430357 | . O-RING | 1 | |
| 32 | 4506415 | . O-RING | 2 | |
| 33 | 4364323 | . O-RING | 1 | |
| 36 | 9180466 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 36 | (9196236) | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 39 | 4234840 | . BRG.; NEEDLE | 1 | |
| 41 | 3085697 | . PLATE; VALVE | 1 | |
| 41 | 3102353 | . PLATE; VALVE | 1 | |
| 42 | 4271350 | . PIN; KNOCK | 2 | |
| 46 | M341432 | . BOLT; SOCKET | 8 | |
| 46 | 4615617 | . BOLT; SOCKET | 8 | |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
